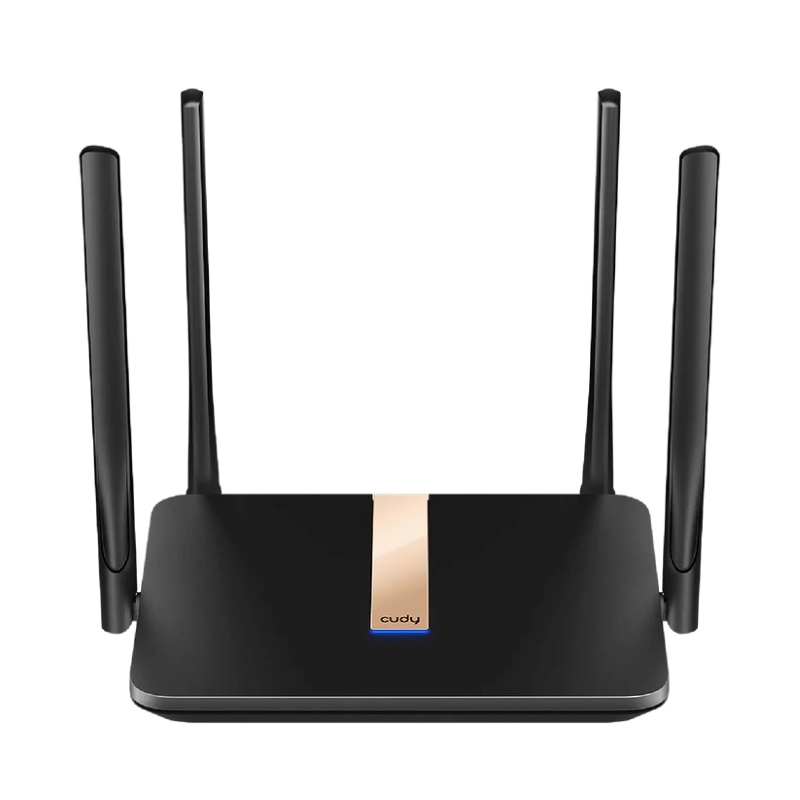

Cudy 4G AC1200 Dual Band Wi-Fi Router with Detachable Antennas, LT500D

About this item

• Works with Major 4G providers. Insert a SIM card from AT&T, T-Mobile to get download speeds up to 150Mbps. Simply insert a SIM card and get all your Wi-Fi devices connected to the internet, very convenient for places where cable internet is unavailable, such as your holiday cabins or remote cameras.
• Convert 4G LTE Signal to WiFi. Unlike other 2.4GHz single band N300 router, it provides a better user experience by providing both 2.4GHz & 5GHz Wi-Fi bands, making it possible to enjoy 867Mbps ultra-fast 5GHz Wi-Fi speed. Simple tasks like web browsing can be handled by 300Mbps 2.4GHz band, while bandwidth intensive tasks like online gaming or streaming can be processed by the 5GHz band at the same time.

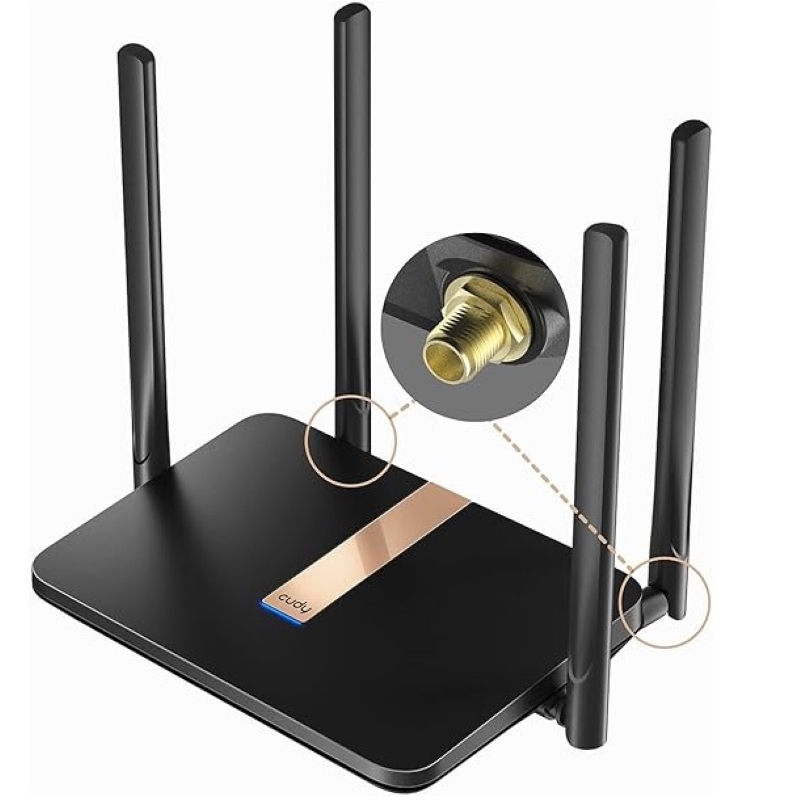

• The replaceable cellular antenna interface provides a variety of installation possibilities. 2 x 5dBi cellular antenna and 2 x 5dBi WiFi antenna enhance the sensitivity of the router and improve the signal quality of 4G LTE and Wi-Fi. At the same time, the cellular antenna is a detachable design. If you want to use an outdoor cellular antenna, the SMA connector also provides the possibility of an external cellular antenna.
• Multiple VPN Protocal support. With built-in PPTP/L2TP/OpenVPN/WireGuard/IPsec VPN protocal supported, this 4G router can easily establish a connection to the VPN server to transport all your online data and traffic, securing it with its encryption at the same time. Compatible with 20 more DDNS providers, convenient to manage your remote cameras.
• Easy and Security. Simply insert the SIM card in the router and type in the PIN in the web configuration page to start exploiting a stable and fast wireless. Provides an easy-to-use graphical management interface, easy to monitor and manage the network. Support DNS Encryption with Cloudflare or NextDNS or google, protect your privacy, prevents eavesdropping and manipulation of DNS data via man-in-the-middle attacks.

Specification:
CPU Details: 580 MHZ Single-Core, MIPS24KEC
Flash/ROM: 16 MB (128 Mbit) NOR
DDR/RAM: 128 MB (1 Gbit) DDR2
Cellular Standards: 4G Cat. 4
Cellular Antennas: 2× Detachable
Detachable Cellular Antennas Connector: SMA Female
SIM Options: 1× Nano SIM Slot
Available Versions: EU, US, LA, CN
5 GHz Wi-Fi Speed 867 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 2× External
5 GHz Antenna Gain Max 4.55 dBi
2.4 GHz Antenna Gain Max 4.25 dBi
FEM or PA/LNA: 5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Range Performance Max: 170 m Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance: Two wooden walls with thickness < 10 cm (4”), One concrete wall with thickness < 20 cm (7”)
Physical Buttons: WPS Button, Reset Button

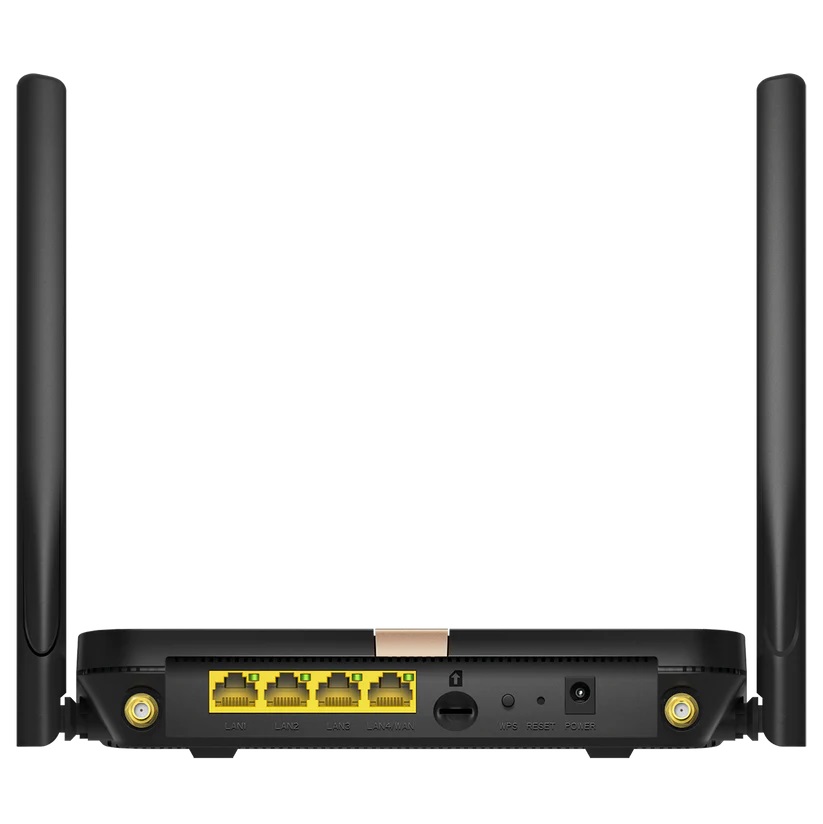

10/100 Mbps RJ45 Ports: 4
Ethernet Notes: 1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
LED: System, Speed/Link/ACT of Ethernet Port
Power Input Type: DC Jack
Power Methods: DC
Power Input: 12V⎓1A
Power Adapter In the Box Input: 100-240V~, 50/60Hz, Output: 12V⎓1A
Max Power Consumption (W): 5.27W
Idle Power Consumption (W): 2.33W

Package Content:
1* LT500D
1* Power Adapter
1* Ethernet Cable
1* Installation Guide

Warranty: 6 Months
