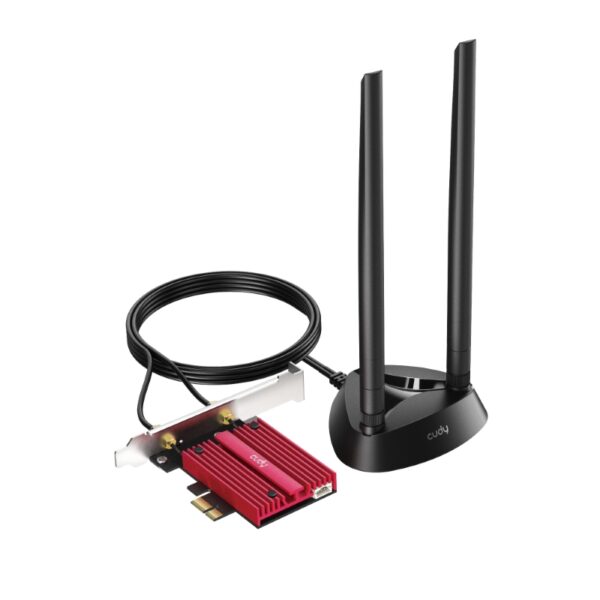

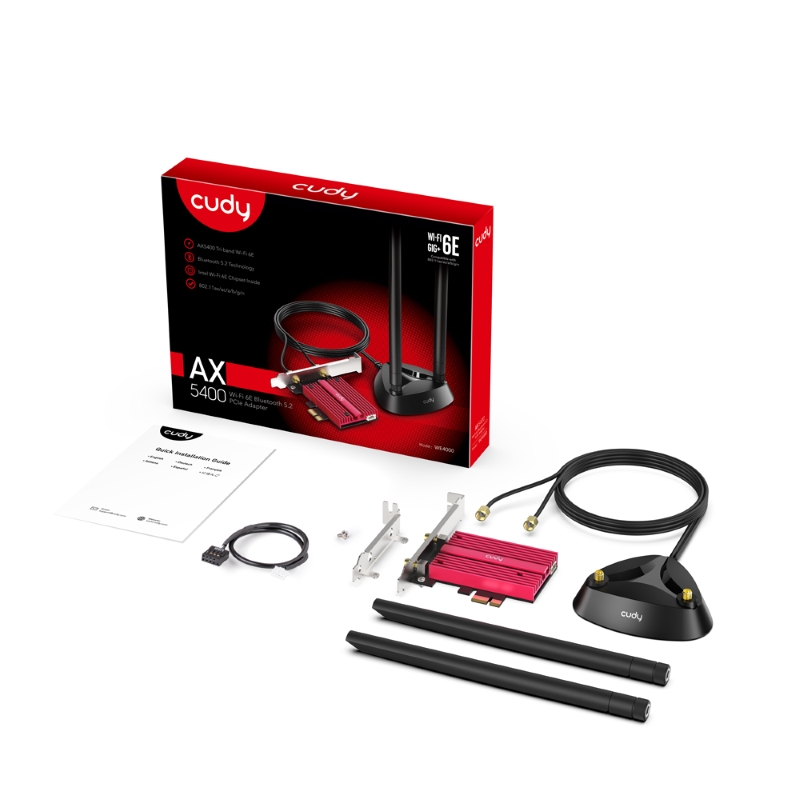

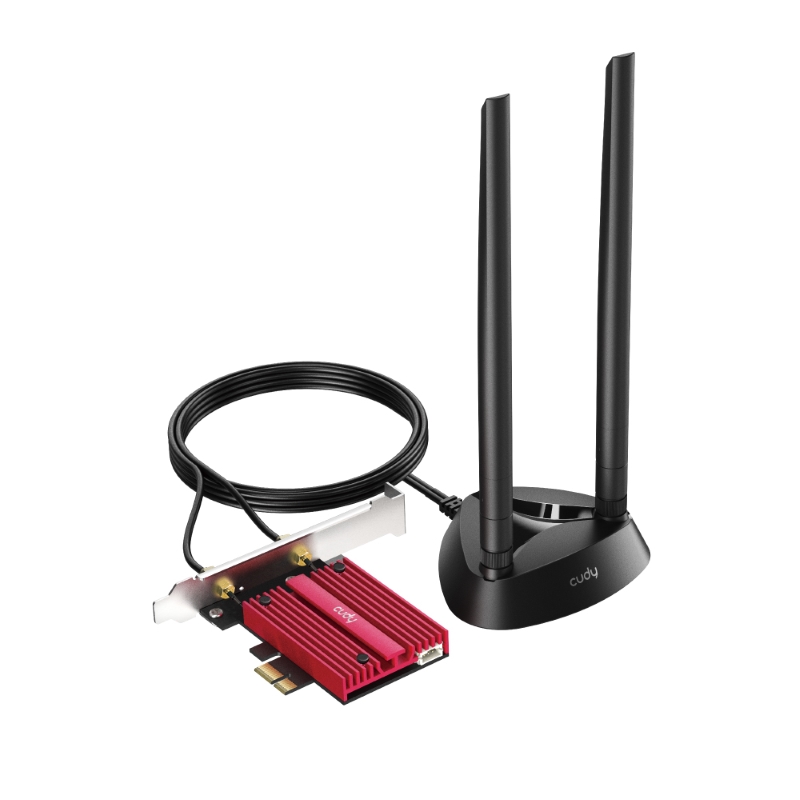

Cudy AX5400 Wi-Fi 6/6E Bluetooth 5.2 PCIe Adapter

Description

AX5400 Wi-Fi 6/6E Bluetooth 5.2 PCIe Adapter,

Model: WE4000

Specifications

Model	WE4000

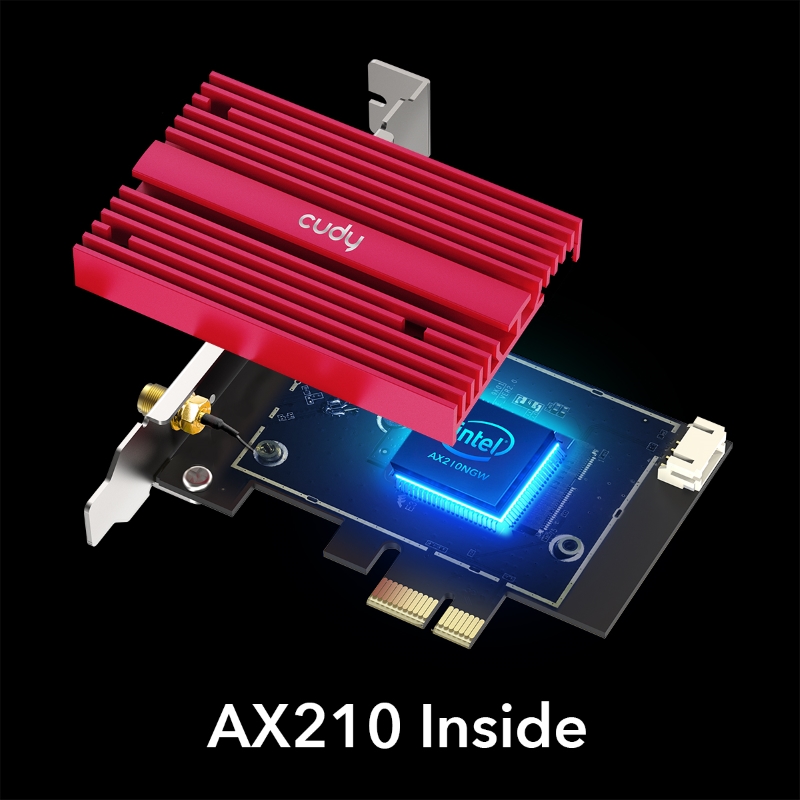

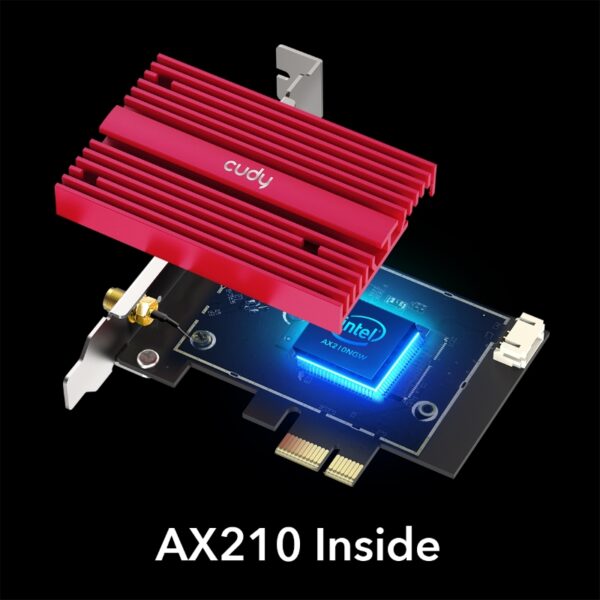

Chipset	Intel AX210NGW
Antenna	External 2x5dBi Antenna
Drive Free	Not Support
Physical Interface	PCIE-X1
USB	Not Support

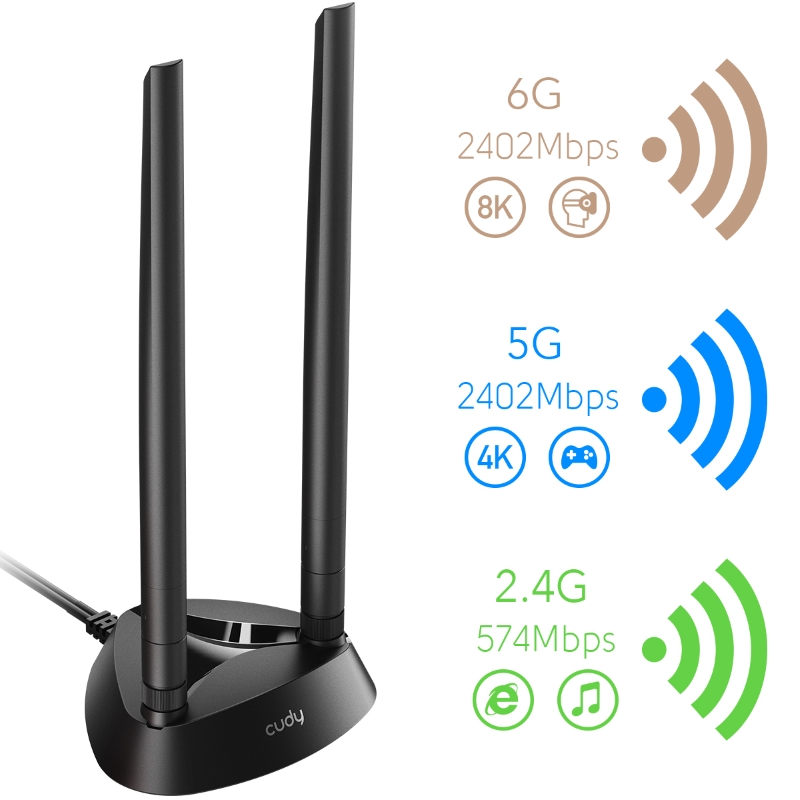

Wireless Frequency	2.412-2.472GHz:574Mbps
	5.180-5.825GHz:2402Mbps
	6GHz: 2402Mbps
Bluetooth	Bluetooth 5.2
Wireless Standard	IEEE802.11ax / ac/ a/ b/ g /n
Compatible Card Slot	PCIE-16X/PCIE-4X/PCIE-8X/PCIE-1X; Graphics slot
Transmit Power	WiFi: 19.5 dBm(max)
Transmit Power	BT:10 dBm
Scope of Application	Desktop PC,Except Mac
Web Environment	Gigabit and above networks
Product Size	Size: 7246mm; Antenna Size: 94.5221.5mm
Support OS	Windows10 (64 bit)
Working Environment	Working Temperature: 0 C~40 C
	Storage Temperature: -40 C~70 C
	Working Humidity: 10%~90%RH Non-condensing
	Storage Humidity: 5%~90%RH Non-condensing
