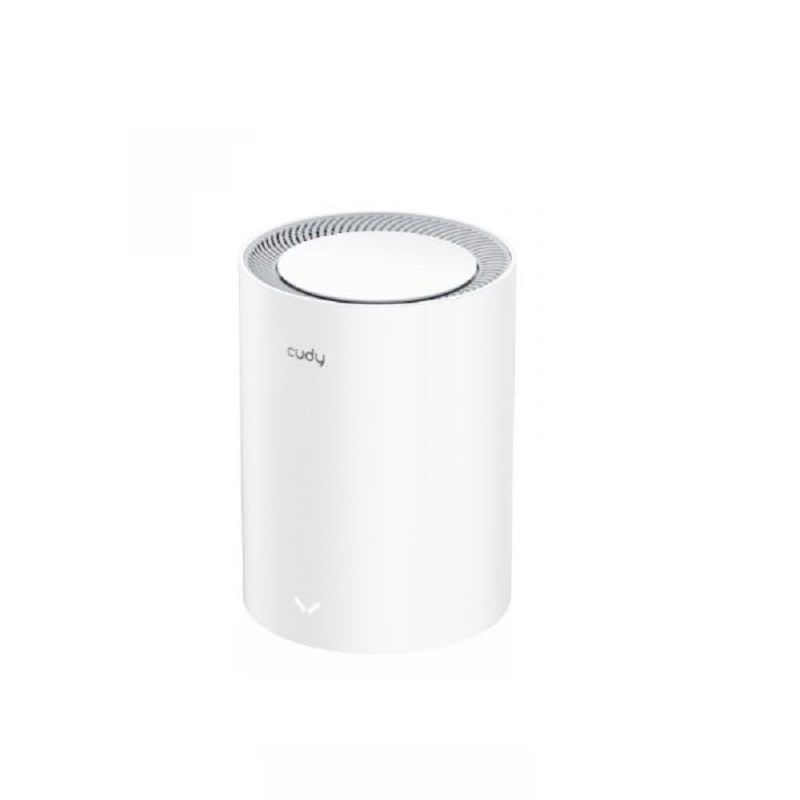

Cudy M Series (AX3000) Dual-Band Wi-Fi 6 2.5G Home Mesh System HyperFibre Ready

A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.

About this item

• AX3000 WiFi 6 Mesh WiFi covers up to 2,500 sq.ft home (1-pack). With a total networking speed of about 3000Mbps, M3000 is 2.5X faster than 802.11ac 2×2 dual-band routers.
• 2.5Gbps Multi Gigabit WAN port provides high speed ethernet speed, Ideal for internet subscriptions above 1 Gbps.
• 1.3GHz Dual Core Cortex-A53 high-performance wireless networking processors deliver highly flexible architecture for the ultimate performance in network-related processing, whole-house wireless coverage, AR/VR gaming, greatly meet the various network needs of every consumer.
• Designed for More Devices. Designed for connecting 200+ devices, everyone is able to enjoy a more efficient network that loads faster without dragging down performance.
• VPN and Security, VPN security with WireGuard, Zerotier, OpenVPN, PPTP, L2TP help build reliable VPN connections. DNS encryption over Cloudflare, NextDNS or Google protect privacy. Latest WPA3 protocol improves cybersecurity in personal networks.

Specification:
CPU Details: 1.3 GHz Dual-Core, ARM Cortex-A53
Flash/ROM: 128 MB (1 Gbit) NAND
DDR/RAM: 256 MB (2 Gbit) DDR3
5 GHz Wi-Fi Speed: 2402 Mbps
2.4 GHz Wi-Fi Speed: 574 Mbps
5 GHz Wi-Fi Streams: 2 Spatial Streams
2.4 GHz Wi-Fi Streams: 2 Spatial Streams
Wi-Fi Antennas: 5× Internal
FEM or PA/LNA: 5 GHz: 3× Internal, 2.4 GHz: 2× Internal
Range Performance Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4”), One concrete wall with thickness < 20 cm (7”) or two concrete walls with thickness < 10 cm (4”)

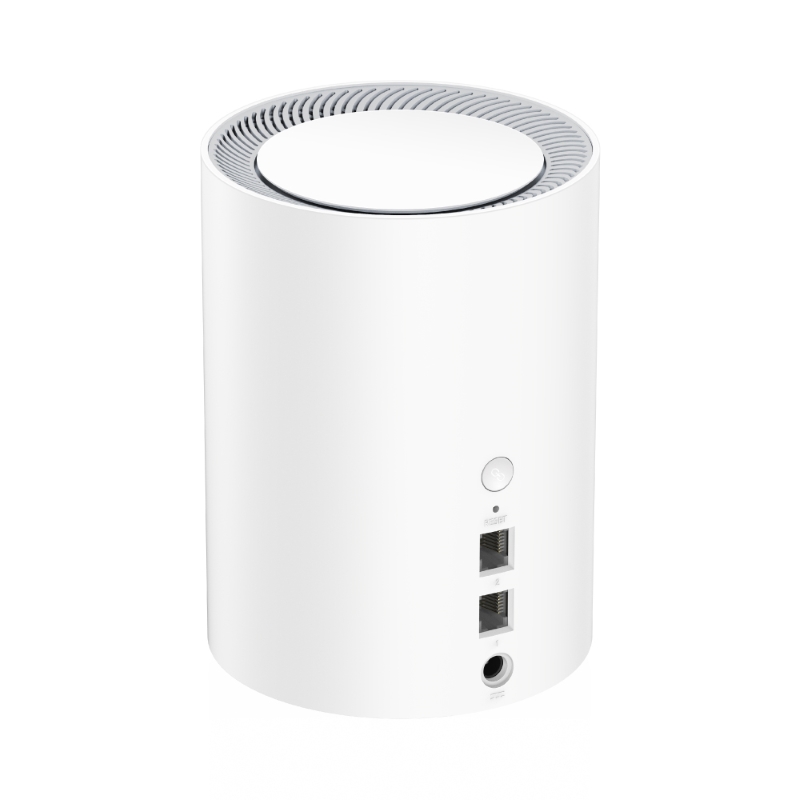

2.5G RJ45 Ports: 1
Gigabit RJ45 Ports: 1
Ethernet Notes The 2.5G port is the WAN port, the Gigabit port is LAN port
LED: System, Speed/Link/ACT of Ethernet Port
Physical Buttons: WPS Button, Reset Button
Power Input Type: DC Jack
Power Methods: DC
Power Input: 12V⎓1A
Power Adapter In the Box Input: 100-240V~, 50/60Hz, Output: 12V⎓1A
Max Power Consumption (W): 11.5W
Idle Power Consumption (W): 4.2W
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 95% non-condensing

Package Content:
1* M3000
1* Power Adapter
1* Ethernet Cable
1* Installation Guide

Warranty: 6 Months
