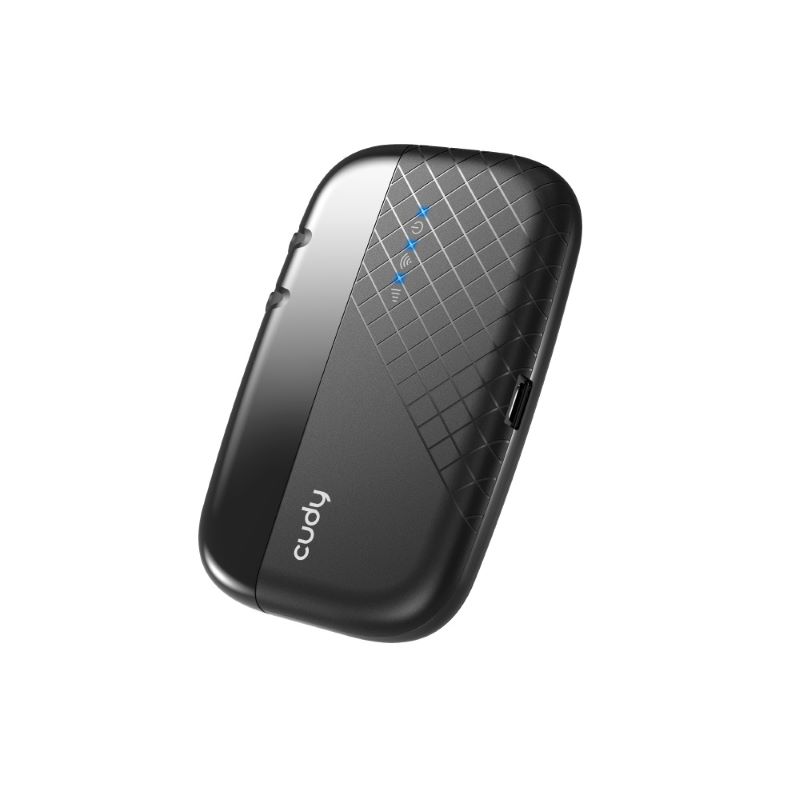

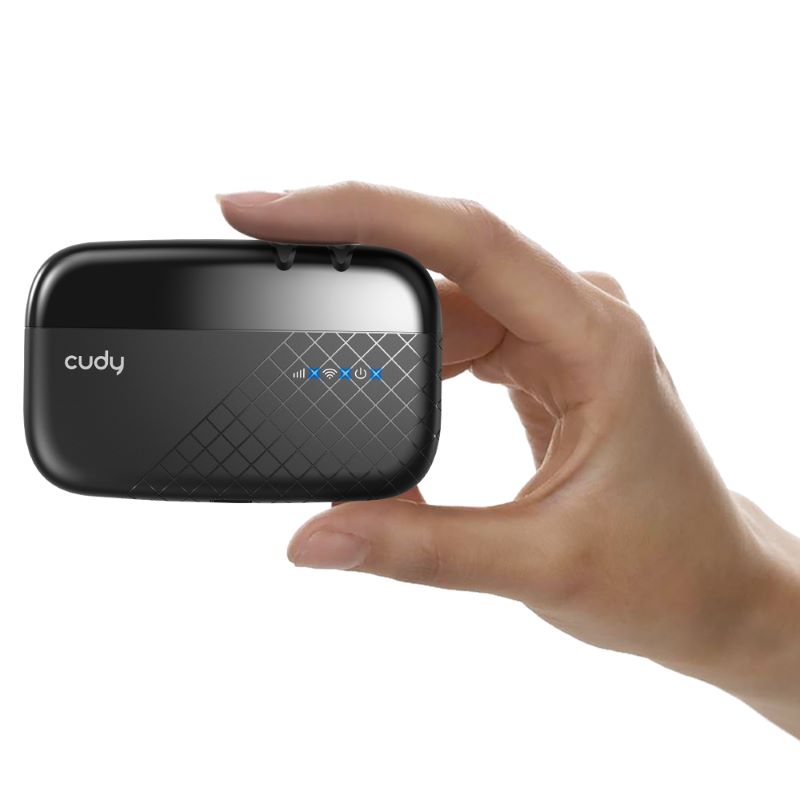

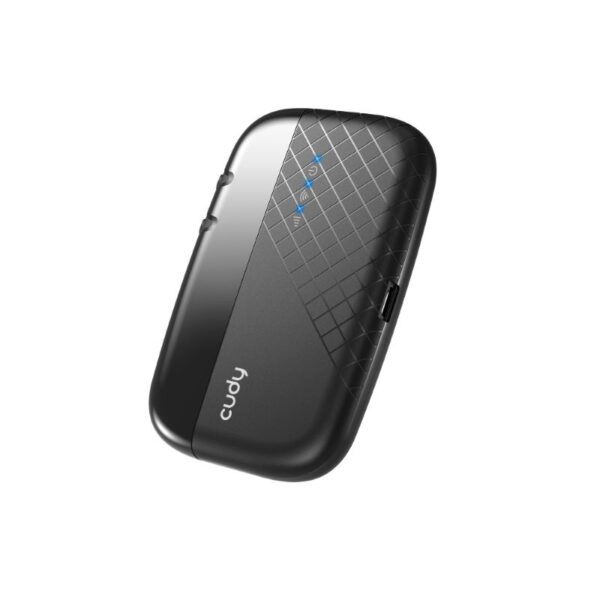

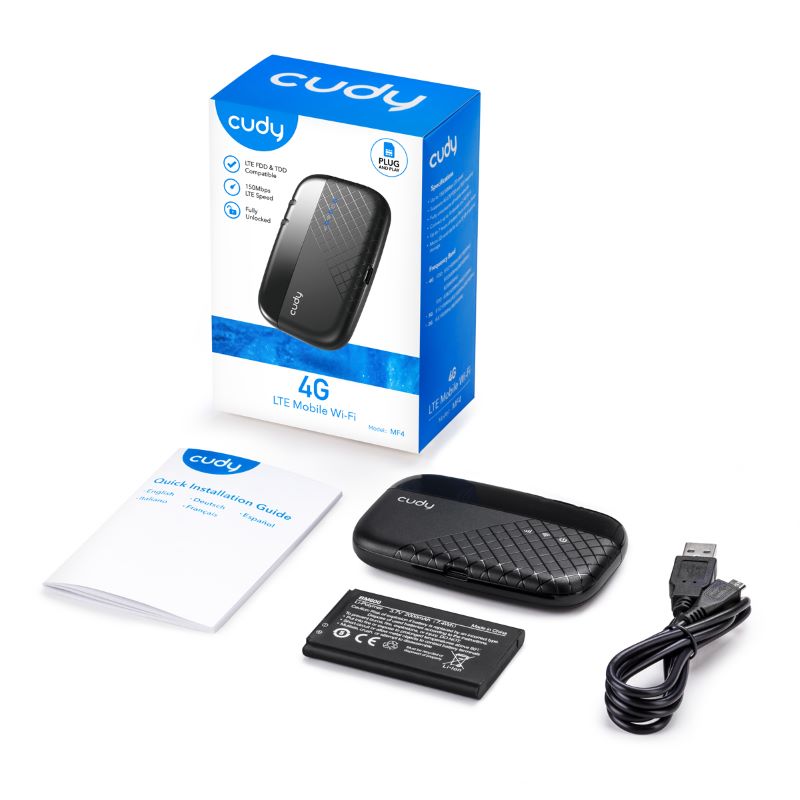

Cudy 4G LTE CAT4 Mobile Wi-Fi Hotspot with SIM card slot
Availability:
Out of stock
SKU: CUDY-MF4
$95.00 Inc. GST
Out of stock
Highlights:
● Share 4G connection with up to 150/50 Mbps (download/upload)
● Support FDD and TDD bands
● Supports up to 10 devices simultaneously
● 2000 mAh battery for 7 hours of usage
Specifications
| Model | 4G LTE Mobile Wi-Fi | ||
| Dimensions | 97 x 61 x 15.5mm | ||
| Weight | 92g | ||
| Form | MiFi / Pocket Router | ||
| Communication System (WAN) |
Chipset | Qualcomm MDM9x07 / MDM9x25 | |
| Frequency Bands | LTE | B1/B3/B7/B8/B20/B38/B40/B41 | |
| UMTS | B1/B3/B8 | ||
| Bandwidth | LTE Band | 1.4/3/5/10/15/20 MHz | |
| Modulation | Downlink | QPSK/16-QAM/64-QAM | |
| Uplink | QPSK/16-QAM | ||
| Antenna | Primary | Internal | |
| Diversity | Internal, UMTS Optional | ||
| RF Power Level | LTE FDD | Power Class 3 (23 +/-2dBm) | |
| UMTS | Power Class 3 (24 +1.7/-3.7dBm) | ||
| Data Rate | 4G | 3GPP R10, Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps | |
| 3G | 3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps | ||
| WLAN | Wi-Fi | Chipset | Realtek 8192ES |
| Frequency | 2.4GHz | ||
| Protocol | 802.11b/g/n | ||
| Channel | 1~13 | ||
| Antenna | Internal | ||
| Data Rate | 802.11b | Up to 11 Mbps | |
| 802.11g | Up to 54 Mbps | ||
| 802.11n | Up to 150 Mbps | ||
| Feature | Interface | USB | USB2.0 |
| USIM | Single, 4FF | ||
| LED | POWER | Power/Battery Status Indicator | |
| Network | 4G/3G/2G Network Status Indicator | ||
| Wi-Fi | Wi-Fi Status Indicator | ||
| WebUI | System | Connection Status | |
| Statistics | |||
| Samba (optional) | |||
| Device Management | |||
| Power Mangement | |||
| Mobile Service |
Automatic APN matching according to USIM | ||
| Auto Data Connection | |||
| PIN/PUK Management | |||
| Network Mode Selection(2G/3G/LTE/Auto) | |||
| Router | USB RNDIS Device | ||
| Up to 10 Wi-Fi users/devices | |||
| DHCP Server | |||
| IPv4/v6 | |||
| VPN Passthrough | |||
| Firewall | |||
| WPS | |||
| Security via WEP, WPA-PSK, WPA2-PSK | |||
| Wi-Fi Settings | |||
| Battery | Type | Li-ion Polymer Battery | |
| Capacity | 2000mAh | ||
| Endurance | 7 hours (normal network situation) | ||
| Operation System | Windows | XP/7/8/10 | |
| MAC OS | 10.7+ | ||
| Linux | Ubuntu 13.04+ | ||
| Browser | IE9+, Firefox, Google Chrome, Safari, Opera | ||
| Environment | Power Supply | USB, 5V1A | |
| Working Temperature | 0°C to 35°C | ||
| Storage Temperature | -20°C to 60°C | ||
| Certification | 3GPP Compliance | CE/FCC/GCF, upon customer’s requirement | |
| Meterial | RoHS | ||
